GxP Documentation and Commissioning Support Across OEM Build, FAT, SAT, and Validation
- KBPS Newsroom
- 14 hours ago
- 9 min read
A qualified system is only as strong as the evidence behind it. In GxP environments, that evidence starts long before a machine arrives on site. It begins with clear requirements, controlled design documents, careful review during the OEM build, and test protocols that prove the system does what it was purchased to do.
For complex automated equipment, the end-user representative plays a critical role. The position sits between the customer, the OEM machine builder, project management, quality, validation, automation, and operations. That role is not limited to attending tests or reviewing paperwork at the end. It means carrying the user requirements through the full lifecycle, verifying that design choices still match the intended use, and making sure unresolved items do not get buried in project noise.
This post walks through that work across the equipment lifecycle, from URS and specification review through FAT, SAT, commissioning, qualification, validation, alarm testing, and measurement system analysis.
Lifecycle documentation must connect requirements to field evidence
GxP documentation is not a paperwork exercise. It is the controlled record that shows the system was planned, designed, built, tested, and accepted according to its intended use.
In a typical automated equipment project, the documentation path includes several linked deliverables:
Document | Purpose in the lifecycle | What good review looks for |
URS | Defines what the end user needs the system to do | Clear, testable requirements tied to product, process, safety, quality, and data needs |
FDS | Describes how the system functions | Direct alignment to the URS, including sequences, modes, interlocks, alarms, and operator actions |
HDS | Defines hardware design | Correct components, instruments, panels, wiring, safety devices, and network architecture |
SDS | Defines software design | Logic structure, control states, recipe handling, data flow, permissions, and fault handling |
Vision FDS | Defines vision system functions | Inspection logic, camera setup, lighting, reject criteria, and image handling |
FAT protocol | Verifies system function at the OEM | Evidence that critical requirements are met before shipment |
SAT protocol | Verifies system performance at the user site | Evidence that installation, utilities, interfaces, and site-specific functions work as intended |
The value comes from the links between these documents. A URS requirement should not sit alone. It should flow into the functional design, appear in hardware or software design where needed, and become testable during FAT, SAT, or qualification.
For example, a URS may state that the system must reject nonconforming units and record the reject reason. That single requirement may create several review points:
The FDS must describe reject logic and system response.
The HDS must include sensors, reject mechanisms, and feedback devices.
The SDS must define how reject events are captured and stored.
The Vision FDS may define the inspection criteria that trigger the reject.
The FAT or SAT protocol must challenge the function and record results.
When the end-user representative follows that thread, gaps become visible early. Missing alarm text, unclear reject confirmation, weak recovery logic, or untestable wording can be corrected before the system is packed and shipped.
The OEM build phase is where many risks are easiest to fix
The build phase at the OEM is one of the best chances to protect schedule, quality, and validation readiness. At that stage, the equipment is still accessible. Engineers, electricians, programmers, and mechanical builders are close to the work. Changes are usually easier to make than they are after shipment.
Serving as the liaison between the customer and an international OEM machine builder requires more than relaying messages. It means representing the end user’s requirements on site, watching how design decisions affect compliance, and helping both sides reach clear closure on open items.
That work often includes:
Reviewing machine build progress against the URS and approved specifications
Checking that functional requirements appear correctly in machine behavior
Confirming that hardware selections match the approved design
Reviewing open items and assigning clear owners
Escalating technical or compliance risk to project management
Supporting decisions when design intent, schedule, and qualification requirements collide
Verifying that fixes are completed and documented before FAT execution
The strongest OEM support happens when issues are treated by risk, not just by count. A cosmetic item and a data integrity concern should not receive the same attention. A missing label may be easy to close later. A control sequence that allows an unsafe or unverified machine state may need immediate escalation.
Open items are manageable when they are visible, owned, and risk ranked. They become project risk when they are vague, deferred, or accepted without evidence.
This is also where communication matters. International equipment builds often involve differences in terminology, test expectations, document format, and interpretation of requirements. The end-user representative helps turn those differences into clear actions.
A short conversation at the machine can prevent weeks of review after the fact. For example, if a functional specification describes an alarm delay, the builder may interpret that delay as a nuisance alarm filter. The validation team may see it as a critical detection timing requirement. The right time to resolve that difference is while the PLC logic, HMI text, and test method are still open for review.
FAT creates the first formal proof point before shipment
Factory acceptance testing is the first major controlled test event. A well-run FAT does not try to test everything. It focuses on proving that the machine, as built, satisfies approved requirements well enough to ship and proceed to site execution.
The end-user representative brings continuity to FAT because they know the URS, FDS, HDS, SDS, vision requirements, and open item history. That context helps separate simple test execution from meaningful verification.
A useful FAT protocol should include:
Clear prerequisites
Approved document references
Required test materials, tools, and setup conditions
Step-by-step test actions
Expected results that match the specifications
Space for objective evidence
Deviation handling
Signatures and review requirements
Poor FAT protocols often fail in predictable ways. They use broad wording such as “verify system works,” or they rely on visual confirmation without defining acceptance criteria. They may test a function once under ideal conditions but never challenge fault paths, recovery states, or operator decision points.
For GxP systems, the test method needs to be specific enough that another qualified person could understand what was done and why the result passed. That does not mean writing excessive steps. It means writing test steps that are clear, repeatable, and linked to risk.
A practical example is a machine mode transition. If the FDS defines manual, automatic, pause, fault, and recovery states, FAT should challenge the transitions that matter. The test should confirm not only that the HMI changes state, but that the machine behavior, interlocks, alarms, and outputs respond correctly.
FAT is also a decision gate. If a critical requirement fails, the question is not only “Can the OEM fix it?” The better questions are:
Does the issue affect safety, product quality, data integrity, or validated function?
Can the fix be verified before shipment?
Does the fix require protocol revision, design document revision, or both?
Does the issue create new risks for SAT or qualification?
Who owns closure, and what evidence is required?
The answers help the project team decide whether to accept, defer, retest, or escalate.

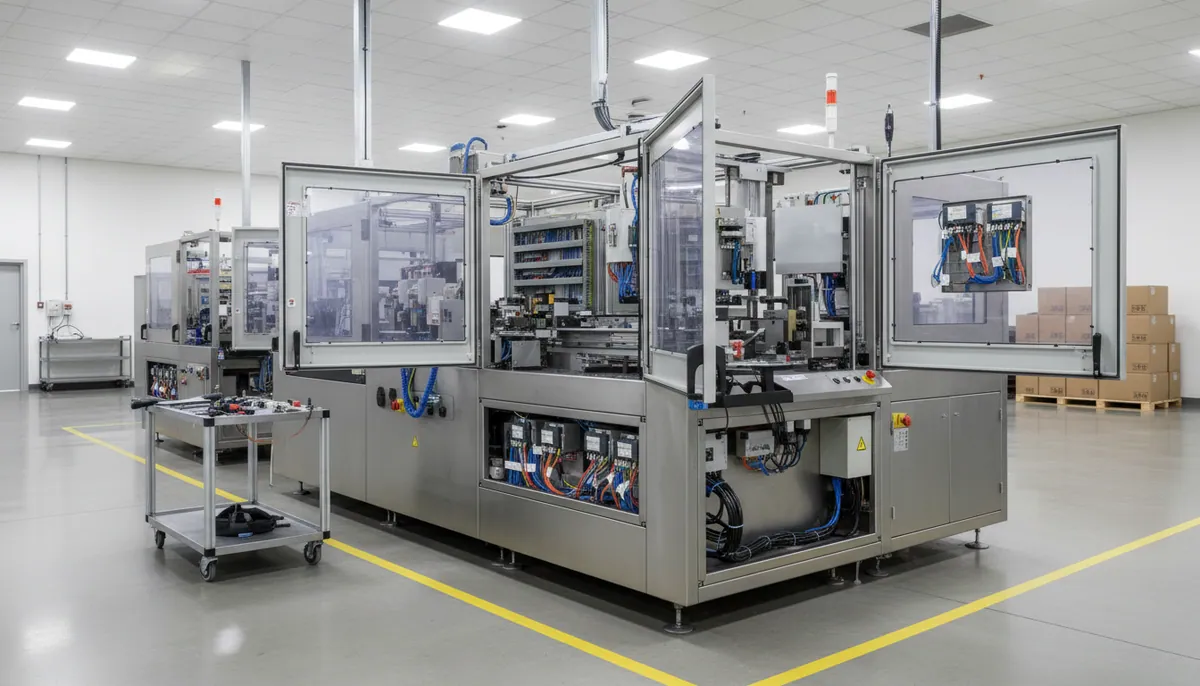

SAT and commissioning bring the system into the real site environment
A machine can pass FAT and still face issues after installation. Site utilities, environmental conditions, network connections, line integration, material handling, operator access, and facility constraints can all affect performance.
At Tempel Lane, on-site commissioning, qualification, and validation support covered the transition from delivered equipment to functional site asset. This phase required attention to both technical execution and documentation discipline.
Commissioning work often includes the practical checks needed to prepare the system for formal testing:
Verifying installation against drawings and vendor requirements
Confirming utilities, air, power, vacuum, and network connections
Checking rotation, motion, sensors, and safety circuits
Supporting dry runs and controlled shakedown
Confirming HMI screens, alarms, recipes, and user access
Capturing issues before formal qualification steps begin
Commissioning and qualification should stay connected, but they are not the same. Commissioning helps make the system ready. Qualification provides documented evidence that defined requirements are met. Blurring those two can create messy records, repeated testing, and unclear acceptance decisions.
SAT sits in the middle. It confirms that the system works in its installed environment. For automated equipment, SAT may include site-specific challenges that FAT could not fully represent. That can include upstream or downstream communication, real utilities, production material flow, local data paths, and facility safety interfaces.
The end-user representative supports SAT by making sure test execution remains controlled, deviations are captured properly, and open items remain visible. After SAT, continued remote engineering support can help close remaining issues, answer technical questions, review evidence, and support the day-shift team as the system moves toward routine use.
Remote support after SAT has real value when it is structured. That means maintaining an active issue list, reviewing evidence before closure, keeping design and validation documents aligned, and making sure late changes do not bypass change control.
Alarm testing needs more than button pushing
Alarm testing is often underestimated. A long alarm list can make testing feel mechanical, but each alarm represents a defined system response to an abnormal condition. In regulated environments, alarms matter because they support safety, quality, equipment protection, and process control.
The best alarm protocols start with PLC logic review. That approach confirms what the system is actually programmed to detect, not just what appears in an alarm list or HMI export. It also helps identify hidden assumptions, shared logic, latching behavior, delay timers, reset requirements, and fault recovery paths.
Developing alarm testing protocols from PLC logic review helps answer questions such as:
What condition triggers the alarm?
Is the trigger based on a sensor, timer, calculated value, communication bit, or machine state?
Does the alarm stop motion, pause the cycle, reject product, or only notify the operator?
Is the alarm latched or self-clearing?
What must happen before reset?
Does the HMI message match the cause and required response?
Is the alarm active in all modes or only under certain conditions?
These details make the difference between checking that an alarm appears and proving that the system responds correctly.
Off-shift execution can also be critical. Alarm testing may interrupt normal commissioning or production readiness work. Running alarm challenges off shift reduces conflict with day-shift priorities and allows focused execution. It can also give the day-shift team cleaner handoffs, clearer evidence, and fewer unresolved questions during peak activity.
A good off-shift model still needs strong communication. Test results, failures, retests, and open items should be easy for the day team to review. That keeps the project moving without forcing every specialist to be present for every test challenge.

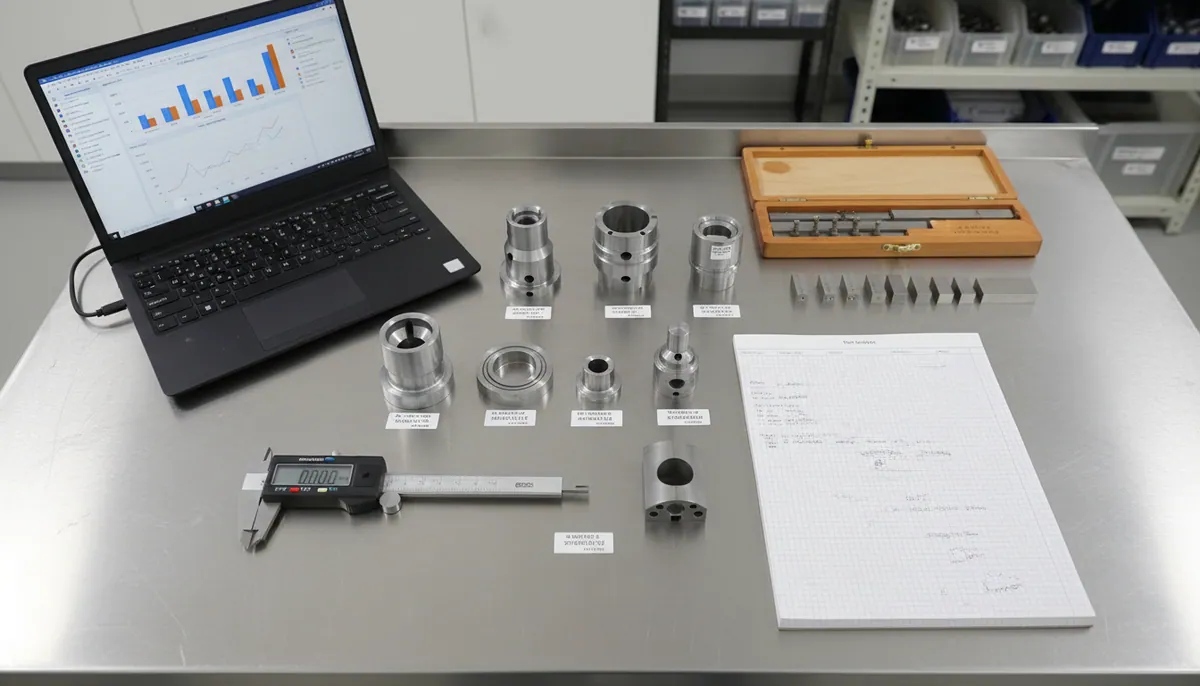

Measurement system analysis supports confidence in inspection results
Automated systems often measure, inspect, or classify product. When those results support acceptance decisions, the measurement system itself needs evidence. That is where MSA protocols become part of the validation strategy.
Measurement system analysis asks a simple question with serious consequences: can the measurement process be trusted for its intended use?
For dimensional checks, vision measurements, or other inspection outputs, MSA may include repeatability, reproducibility, bias, linearity, stability, measurement uncertainty, and capability analysis. The exact method depends on the measurement type, risk, tolerance, sample strategy, and intended decision.
Minitab is often used to support this analysis because it can calculate common MSA and capability outputs in a consistent way. The tool does not replace engineering judgment. The protocol still needs to define the study design, sample selection, operators or appraisers, trials, acceptance criteria, and handling of invalid results.
Measurement uncertainty deserves special care. A measurement value is not absolute. There is always some range of doubt caused by the instrument, fixture, method, environment, part variation, and appraiser influence. If that uncertainty is large compared with the tolerance, the system may not be suitable for the decision it is making.
Capability analysis also adds context. A measurement system may be repeatable, but the process it measures may still not be capable. By separating measurement variation from process variation, the team can avoid chasing the wrong problem.
For example, if an automated inspection flags frequent failures near a specification limit, the issue could be true process variation, weak lighting, poor fixturing, part presentation, camera resolution, or threshold logic. A well-designed MSA helps narrow the cause instead of relying on guesswork.
The best support keeps quality, engineering, and schedule aligned
GxP equipment projects fail when documentation, engineering, and execution drift apart. Requirements get approved but not tested. Design changes happen but do not reach the protocol. FAT open items move to SAT without risk review. SAT issues linger after the team has shifted attention elsewhere.
Strong end-user representation holds those threads together.
That does not mean slowing the project down. In many cases, it prevents rework. It gives project management earlier risk signals. It gives the OEM clearer expectations. It gives quality and validation better evidence. It gives operations a system that is easier to understand, challenge, and maintain.
The work spans many layers:
Lifecycle documentation that connects URS, FDS, HDS, SDS, Vision FDS, FAT, and SAT
OEM build support that verifies compliance before shipment
Open item closure that uses ownership, evidence, and risk ranking
Commissioning support that prepares the system for formal testing
Qualification and validation support that protects documentation quality
Alarm protocols based on PLC logic, not surface-level alarm lists
Off-shift execution that supports the day-shift team
MSA protocols with measurement uncertainty and capability analysis in Minitab
Remote engineering support after SAT to close the loop
The main takeaway is simple: GxP success depends on continuity. The same requirements that define the system at the start must still be visible at the end, in the design, in the machine behavior, in the test evidence, and in the final acceptance record.
When that continuity is managed well, FAT becomes more than a shipment checkpoint. SAT becomes more than an installation test. Validation becomes more than a documentation package. The result is a qualified system with evidence that can stand up to review and support real production use.
