CQV Automation for MOT Autoinjector Assembly Machine

A small error in an autoinjector assembly line can become a large compliance problem. A missing torque record, an unclear alarm test, or a version mismatch in a PLC program can delay qualification and create avoidable risk before the first commercial batch ever runs.

That is why CQV is becoming more digital, more connected, and more test-driven. For an MOT autoinjector assembly machine, CQV automation can help teams prove that the equipment was built correctly, operates as intended, and supports consistent product quality without relying on scattered spreadsheets and handwritten evidence.

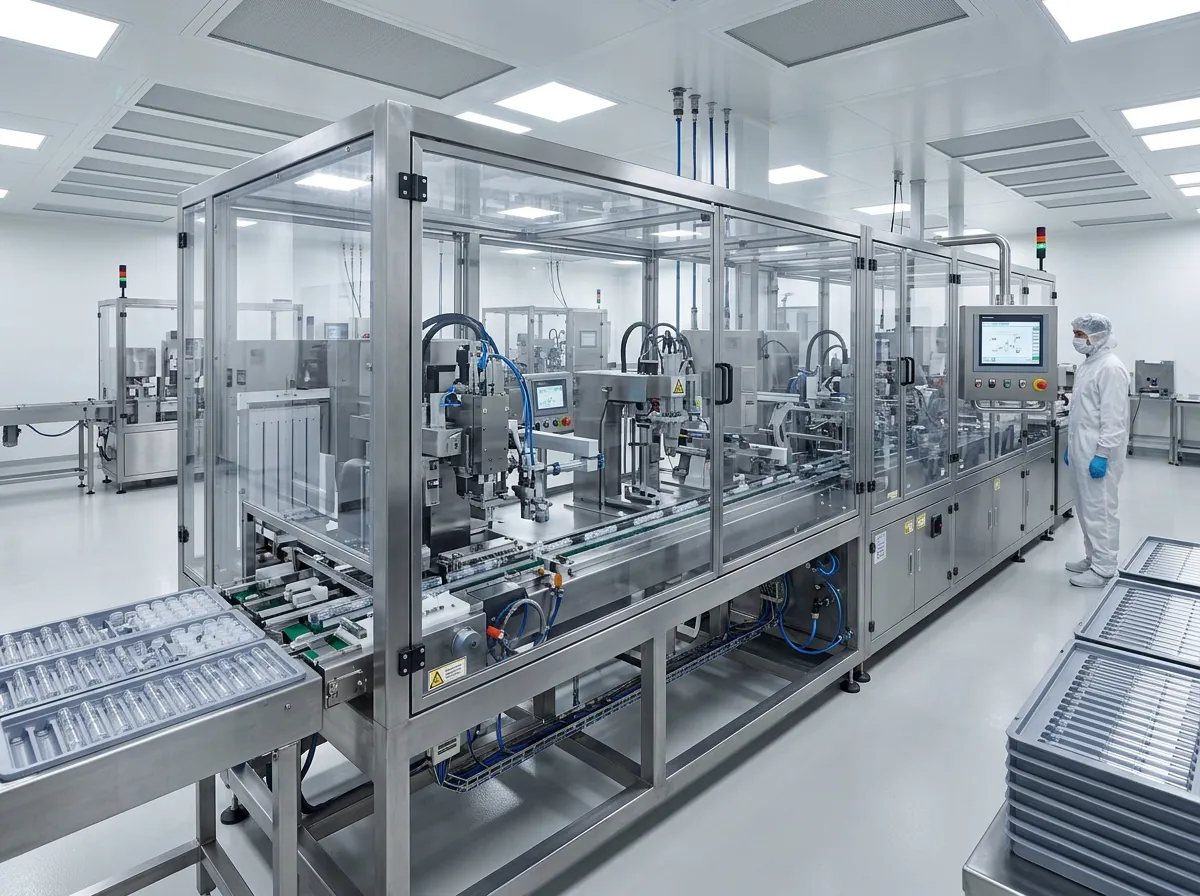

Autoinjector assembly equipment needs clear digital evidence from the start.

CQV must match the way autoinjector equipment really works

CQV stands for commissioning, qualification, and validation. It covers the lifecycle from installation checks through documented evidence that a machine can repeatedly perform its intended function.

For an autoinjector assembly machine, that evidence usually touches many systems:

• Component feeding and orientation

• Syringe or cartridge handling

• Spring, plunger, needle shield, and cap assembly

• Vision inspection

• Force, distance, and torque monitoring

• Reject handling

• Recipe management

• Batch reporting

• Alarm and interlock behavior

• Data integrity controls




The challenge is that these systems do not work in isolation. A safety door interlock may stop the conveyor. A vision failure may trigger a reject lane. A force curve may decide whether a unit passes or fails. CQV needs to test those links, not just check that each station powers on.

Automation helps because it connects testing to the control system, electronic records, and defined acceptance criteria. It turns CQV from a document-heavy event into a controlled process.

Manual CQV creates gaps that show up late

Manual qualification can work, but it is often slow and fragile. Testers have to gather screenshots, write values into forms, confirm alarms, and label evidence by hand. When the machine has many stations and recipes, the number of checks grows quickly.

Common weak points include:

• Test steps that are interpreted differently by different people

• Screenshots that do not show the required context

• Evidence files saved with unclear names

• PLC and HMI versions not linked to test execution

• Repeated typing of setpoints, tolerances, and results

• Deviations raised late because failures were hard to see in real time




None of these issues means the team lacks skill. They happen because manual CQV asks people to manage too many details across too many systems.

A better approach captures machine data directly wherever possible. It also guides the tester through approved steps and prevents evidence from being separated from the test that created it.

Automated CQV turns requirements into executable tests

The core of CQV automation is traceability. Each requirement should connect to one or more tests. Each test should connect to evidence. Each result should show whether the acceptance criteria were met.

For an MOT autoinjector assembly machine, this may include automated or semi-automated checks such as:

• Verifying installed software versions against approved baselines

• Recording sensor states during defined machine actions

• Capturing alarm activation and reset behavior

• Testing recipe limits and access controls

• Confirming reject logic when a simulated fault occurs

• Recording inspection results from vision or measurement stations

• Linking test execution to timestamps and user identity




Some tests still need human observation. For example, an operator may need to confirm that a mechanical guard is fitted correctly or that a physical part is present. Even then, an automated workflow can control the step sequence, require required fields, attach photos, and record review status.

The goal is not to remove people from CQV. The goal is to remove avoidable uncertainty.

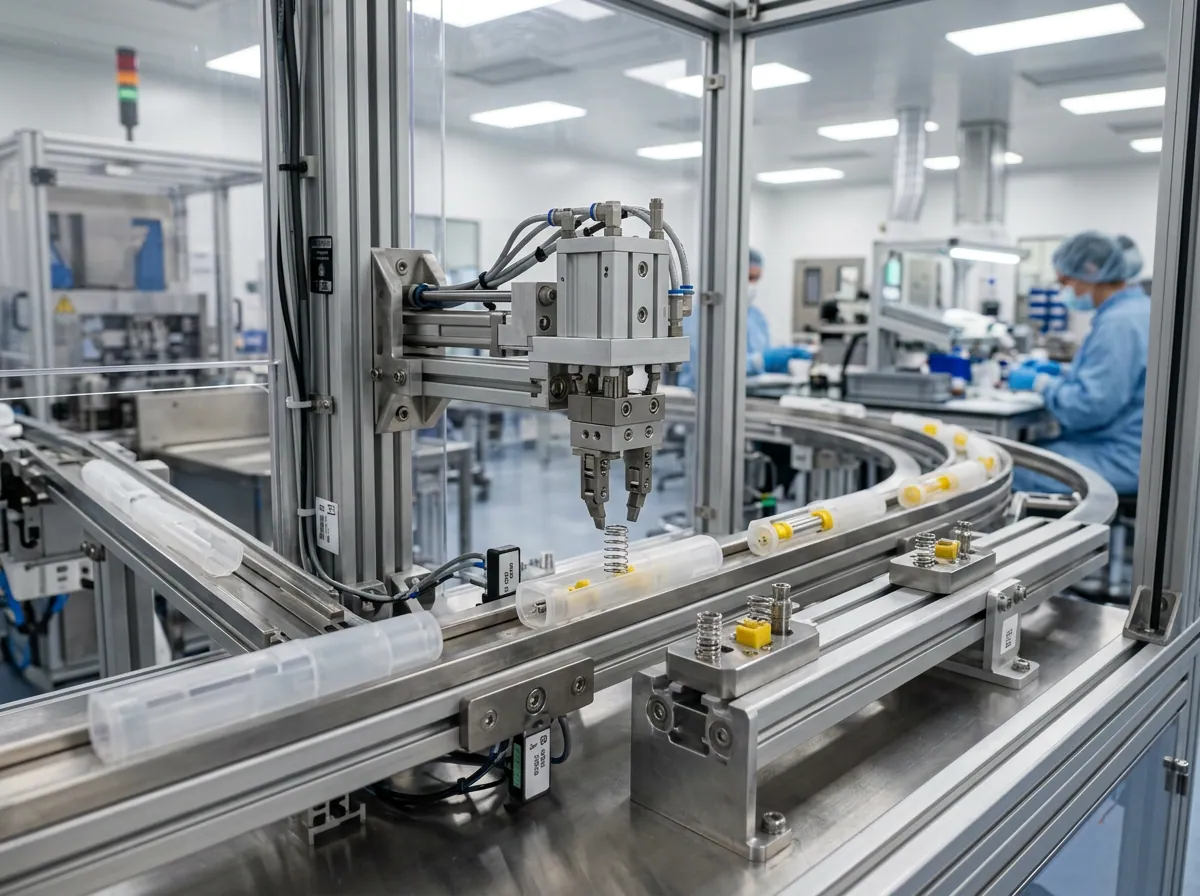

Machine events and component handling should be tied to qualification evidence.

Good automation starts before factory acceptance testing

CQV automation works best when it begins during the design and build phase, not after the machine arrives on site. By the time site acceptance testing starts, the team should already know what evidence the system needs to create.

A practical sequence looks like this:

1. Define critical functions early




   Identify the machine functions that affect product quality, user safety, data integrity, or batch release. These functions deserve the strongest test coverage.




1. Map requirements to controls




   Connect user requirements to PLC logic, HMI screens, recipes, sensors, inspection tools, and reports. This prevents orphan requirements that no test can prove.




1. Build test scripts around machine states




   Autoinjector equipment has clear states such as idle, setup, automatic run, alarm, fault recovery, and batch end. Test scripts should follow those states so evidence reflects real use.




1. Connect evidence to source data




   Where possible, collect values directly from PLC tags, SCADA records, batch reports, audit trails, or inspection systems. Manual entry should be limited to items that truly require judgment.




1. Control change during testing




   Software revisions, mechanical adjustments, and recipe edits must be visible during CQV. A test result is only meaningful when it is tied to the exact configuration that produced it.




Data integrity has to be designed into the workflow

Autoinjector assembly is part of a regulated environment, so automated CQV must support data integrity principles. The records need to be attributable, legible, contemporaneous, original or true copy, and accurate.

In practice, that means the CQV platform or workflow should support:

• Unique user access

• Time-stamped test execution

• Controlled electronic signatures

• Audit trails for changes

• Version control for scripts and requirements

• Secure evidence storage

• Clear review and approval status




This matters most when failures occur. A failed test is not just a red mark. It should show what happened, when it happened, which system state was active, which software version was running, and what correction followed.

That level of detail helps quality, engineering, and validation teams make better decisions. It also makes inspections less painful because the evidence is organized and traceable.

A practical CQV automation model for autoinjector assembly

A useful model is to split CQV automation into three layers.

Layer	What it does	Example on an autoinjector line
Test execution	Guides the tester through approved steps	Starts an alarm challenge and records the result
Data capture	Collects machine and system evidence	Reads PLC tag values, batch IDs, recipe names, and timestamps
Review control	Manages approval and exceptions	Routes failed steps for investigation and re-test approval

This structure keeps the system manageable. Teams do not need to automate every possible check at once. They should start with high-risk, high-repeat activities where digital evidence gives the clearest benefit.

Good starting points include alarm testing, recipe verification, access control testing, reject confirmation, and batch report checks.

The strongest gains come after the first qualification

The first automated CQV project takes planning. Requirements need structure. Test scripts need discipline. Control system data must be named and mapped clearly.

The real value grows over time.

When the same machine needs a software update, recipe expansion, station modification, or repeat qualification, the team can reuse controlled test modules. They can compare new evidence with past results. They can focus effort on changed functions instead of rebuilding the whole package from scratch.

That is especially useful for autoinjector platforms that support multiple product variants. Different device sizes, spring forces, labels, or assembly recipes may require targeted testing. Automated traceability helps define what changed and what must be proven again.

What success looks like

Successful CQV automation for an MOT autoinjector assembly machine should produce a simple result: faster, clearer, and more reliable qualification evidence.

The signs are easy to recognize:

• Requirements, tests, and evidence are linked

• Testers follow the same approved workflow every time

• Machine data supports pass or fail decisions

• Deviations are easier to investigate

• Reviewers can find evidence without searching through folders

• Requalification after change takes less effort




CQV will always require engineering judgment and quality oversight. Automation does not replace that expertise. It gives the team cleaner records, fewer manual gaps, and a stronger basis for proving that the autoinjector assembly process is under control.
